InSight S385PIBusiness Networking, Business Security, Security Camera

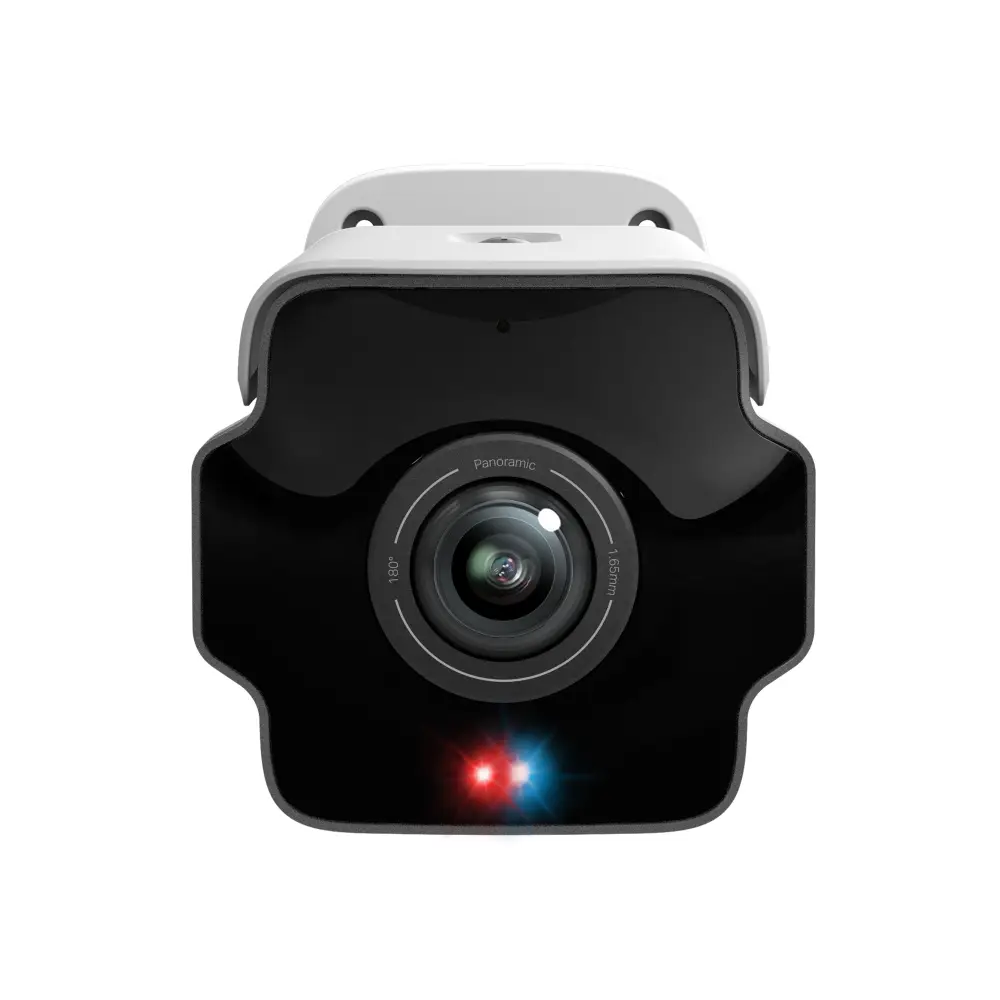

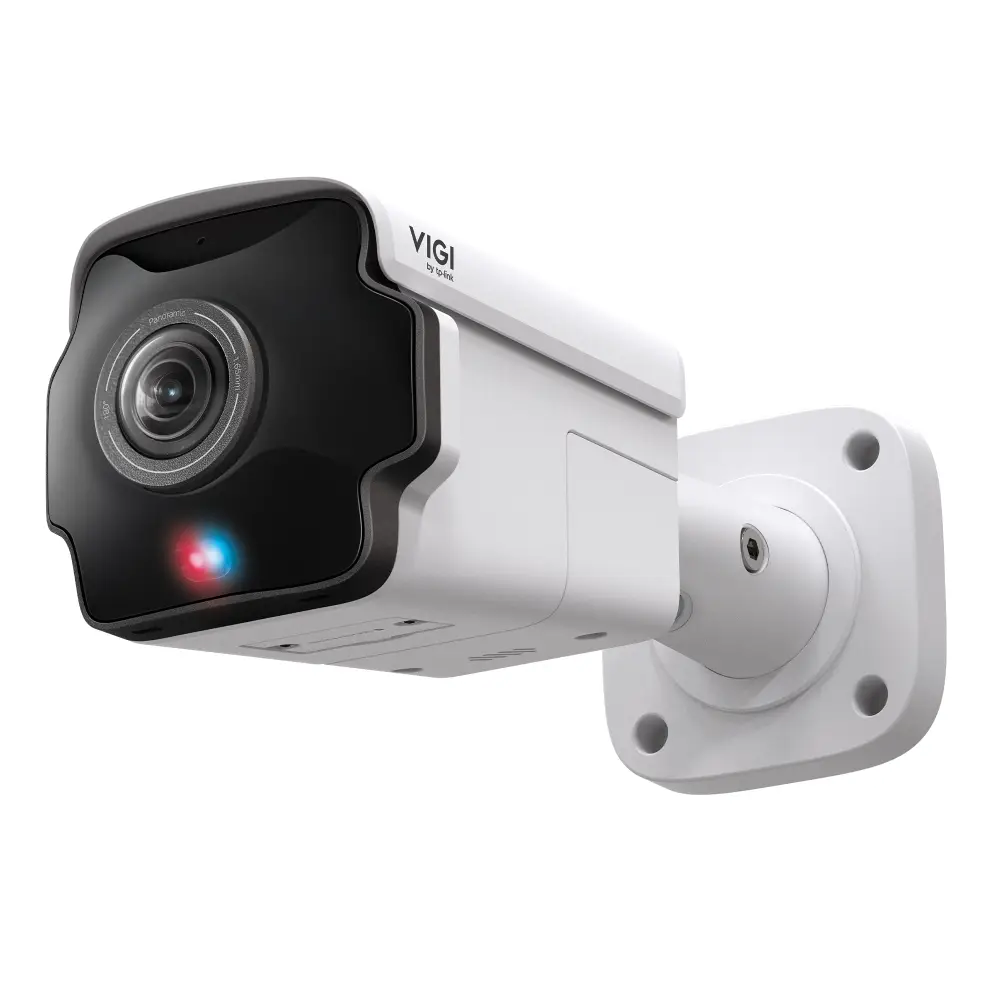

VIGI 8MP Outdoor IR Panoramic Bullet Network Camera

+ Free Shipping

180° Panorama View with Huge Vision
4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)^†
Red-Blue Warning Lights with Stronger Deterrence
People & Vehicle Analytics^‡
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Audio and Alarm Interface Available
IP67 Weatherproof and IK10 Vandal Proof
H.265+ Compression Technology

SKU: InSight S385PI Categories: Business Networking, Business Security, Security Camera Brand: Tp-Link, Vigi

Specification

Camera

Image Sensor	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto

Video & Audio Features

Audio Communication	Two-Way Audio
Audio Input	Built-in Microphone Audio In Interface
Audio Output	Built-in Speaker Audio Out Interface
Audio Compression	Yes
Audio Sampling Rate	8 KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

Lens

Type	Fixed Focal Lens
Focal Length	1.65 mm
Aperture	F2.0
FOV	• Horizontal FOV: 180° • Vertical FOV: 86° • Diagonal FOV: 180°
Lens Mount	M12
DORI Distance	1.65mm: • D: 144.36 ft (44 m) • O: 60.15 ft (18.33 m) • R: 28.87 ft (8.8 m) • I: 14.44 ft (4.4 m)

Angle Adjustment

Range	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Illuminator

IR LED	• Quantity: 4 • Range: 65.62 ft (20 m)^† • Wavelength: 850nm
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

Video

Max. Resolution	3840×2160
Main Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 3840×2160,2560×1440,2304×1296,2048×1280,1920×1080,1280×720 Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848×480,704×576, 640×480, 640×360,352×288, 320×240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 8 Mbps • Sub-Stream: 64 Kbps to 1024 Kbps


Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	4 Regions
OSD Setting	Yes
