Hardware Features
Button: Reset Button
Indicator LED: System LED
Adapter Input: 100-240VAC, 50/60Hz, 0.3A
Adapter Output: 9.0V/0.6A
Product Dimensions (W x D x H): 3.4 x 3.3 x 4.6 in. (86.6 x 85 x 117.7 mm)
Security
On-Device Machine Learning128-bit AES Encryption with SSL/TLSWPA/WPA2-PSK
Camera
Image Sensor: 1/3”
Lens: Focal Length: 4.0mm±5%F/NO: 2.0±10%
Night Vision: 850nm IR LED Night Vision up to 30ft
Lighting: /
Hub Compatibility: /
Interface & Button : 1× RESET Button1× MicroSD Card Slot (Up to 512GB)

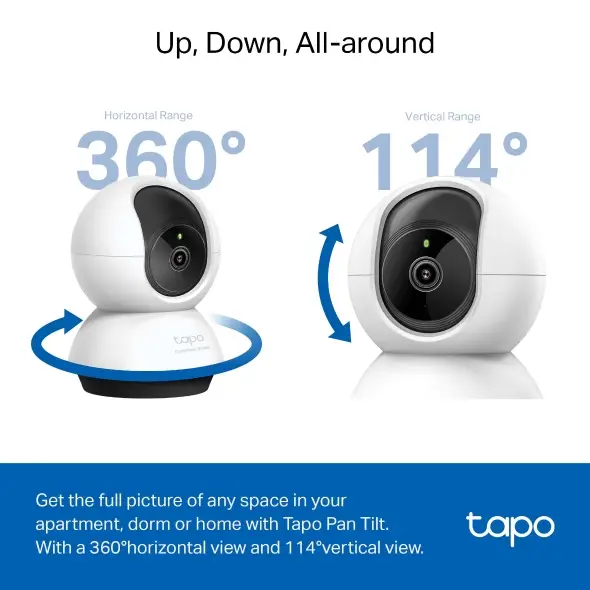

Pan/Tilt Range: Pan Mechanical Range: 340° (360° Pan Coverage)Tilt Mechanical Range: 69°
Resolution: 2K 4MP QHD （2560 * 1440 px）
Video & Audio Features
Maximum Resolution: 1× RESET Button | 1× MicroSD Card Slot (Up to 512GB)
Frame Rate: 15/20/25/30 fps (Default 15fps)
Video Compression: H.264
Live View: Yes
Image Enhancement: 3D DNR | BLC
Audio Input & Output: Built-in Microphone and Speaker
Audio Communication: Two-Way Audio with Noise Cancellation
Siren Volume: 99dB (Level measured at 4-inch/10-cm distance)
Storage
Local Storage: MicroSD Card Slot on Camera (Up to 512 GB) | General Information about using MicroSD Cards >
Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)
Network
Network Connectivity: Connect via Wi-Fi
Wireless Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Protocol: TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Wireless Rate: 11Mbps(802.11b) | 54Mbps(802.11g) | 72.2Mbps(802.11n)
Ethernet Port: /
RTSP: Yes
ONVIF: Supported
Cloud: Supported
Security: 128 bit AES encryption with SSL/TLS
Power
Power Source: 9V DC Power Adapter
Input Voltage: 100-240 V, 50/60 Hz
Output Voltage: 9V, 0.6 A (DC Power)
Camera input: 3 Meter Power Cable
Detection and Notification
Sensor: /
AI Detection: Motion DetectionPerson DetectionLine-Crossing DetectionTamper DetectionBabyCry DetectionVehicle DetectionPet DetectionMeow DetectionBark DetectionGlass-Breaking Detection
Activity Zones:
Yes
Output Notification :
System NotificationSystem Notification with Snapshot (Tapo Care Services)
Input Trigger: Motion detection、Person detection、line Crossing detection、Tamper detection、Baby Crying Detection、Vehicle Detection、Pet Detection、Meow Detection、Bark Detection、Glass Detection
Output Notification: Notification, Snapshot(Tapo care) Clips(Tapo care)
Package Content
Tapo Pan/Tilt Home Security Wi-Fi CameraPower AdapterQuick Start GuideMounting ScrewsMounting PlateCamera Base
General Features
Smart Integration: Google Assistant, Amazon Alexa
Weather Resistance: /
Mounting Options: Tabletop , Ceiling-Mounted
Operating Temperature: 0℃~40℃
Storage Temperature: -20℃~70℃
Operating Humidity: 10%~90% RH, Non-condensing
Storage Humidity: 5%~90% RH, Non-condensing
Charging Temperature: /
Dimensions: 3.36 × 3.42 × 4.63 in (85.4 × 86.8 × 117.7 mm)
Package Contents: Tapo C220 Camera, Power Adapter, Quick Start Guide, Mounting Screws, Mounting Anchors, Mounting Template, Camera Base,
Certifications: CE, FCC, RCM, WEEE, EAC
Hub
Device Compatibility: /
Connection Capacity: /
Interface & Button: /
Video
Frame Rate: 2560×1440@30fps
Video Compression: H.264
Audio
Audio Communication: Two-Way Audio
Audio Input & Output::Built-in microphone and speaker
Others
Operating Temperature: 0℃~40℃
Storage Temperature: -20℃~60℃
Operating Humidity: 10%~90%RH, Non-condensing
Storage Humidity: 5%~90%RH, Non-condensing
