Hardware Features
Button: RESET Button
Indicator LED: System LED
Adapter Input: 100-240V, 50/60Hz
Adapter Output: 9V, 0.85A (DC Power)
Product Dimensions (W x D x H): 4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm)
Security
On-Device Machine Learning128-bit AES Encryption with SSL/TLSWPA/WPA2-PSK
Camera
Image Sensor: 1/3‘’ CMOS
Lens: F/NO: 1.61±10%; Focal Length: 3.18mm±5%
Night Vision: 850 nm IR LED (up to 98 ft), Starlight Color Night Vision
Lighting: 2× Built-in Spotlights, Interface & Button : 1× Ethernet Port, 1× RESET Button, 1× MicroSD Card Slot (Up to 512GB)

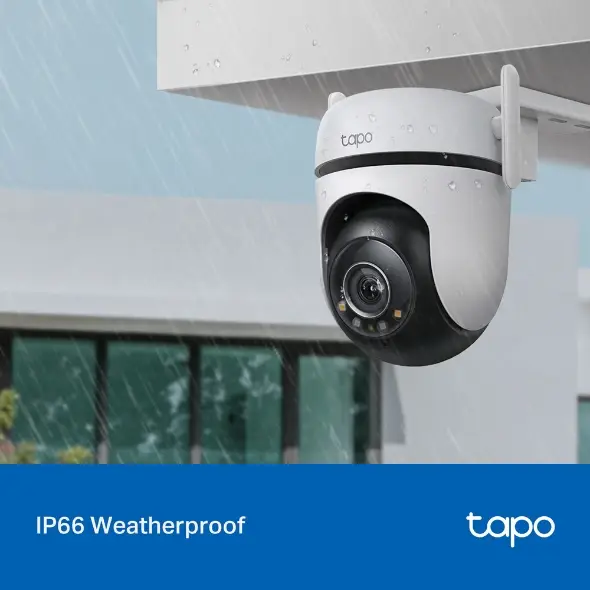

Weatherproof Rating: IP66
View Range: 360° horizontal and 130° vertical
Pan/Tilt Range: Pan Mechanical Range: 340° (360° Pan Coverage)Tilt Mechanical Range: 90°(145.2° Tilt Coverage)
Resolution:2K QHD 4MP (2560 × 1440 px)
Video & Audio Features
Maximum Resolution: 2K QHD 4MP (2560 × 1440 px)
Frame Rate: 15/20/25/30 fps (Default 15 fps)
Digital Zoom: 12x
Video Compression: H.264
Live View: Yes
Image Enhancement: 3DNR, WDR
Audio Input & Output: Built-in Microphone and Speaker
Audio Communication: Two-Way Audio with Noise Cancellation
Siren Volume: 93 dB (Level measured at 4-inch/10-cm distance)
Storage
Local Storage: MicroSD Card Slot on Camera (Up to 512 GB), General Information about using MicroSD Cards >
Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)
Network
Network Connectivity: Connect via Wi-Fi or Ethernet
Wireless Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Protocol: TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Ethernet Port: 1× 10/100 Mbps RJ45 Port on Camera
Wireless Security: WPA/WPA2-PSK
RTSP: Yes
ONVIF: Yes
Security: 128 bit AES encryption with SSL/TLS
Standards and Protocols: IEEE 802.11b/g/n
Frequency: 2.4GHz
Power
Power Source: 9V DC Power Adapter
Input Voltage: 100-240 V, 50/60 Hz
Output Voltage: 9 V, 0.85 A (DC Power)
Detection and Notification
AI Detection:
Motion DetectionPerson DetectionPet DetectionVehicle DetectionLine-Crossing DetectionTamper Detection
Activity Zones: Yes
Output Notification : System Notification, System Notification with Snapshot (Tapo Care Services)
Input Trigger: Motion detection, Person detection, Pet detection, Vehicle detection, Line-Crossing detection
Output Notification: Snapshot(Tapo care), Clips(Tapo care)
General Features
Smart Integration: Google Assistant, Amazon Alexa
Weather Resistance: IP66
System Requirements : Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
Mounting Options: Ceiling-Mounted, Wall-Mounted, Pole-Mounted (Pole-Mounting loops required but not included)
Operating Temperature: -30℃~60℃
Storage Temperature: -40℃~60℃
Operating Humidity: 10%~90% RH, Non-condensing
Storage Humidity: 0~90% RH, Non-condensing
Dimensions: 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)
Package Contents:
Tapo C520WS CameraPower AdapterMounting AnchorsMounting ScrewsBracket ScrewsMounting TemplateMounting BracketWaterproof SealWaterproof Cable AttachmentsQuick Start Guide
Certifications: CE, FCC, RoHS, RCM
Video
Frame Rate: Up to 25/30fps
Video Streaming: 2K QHD
Video Compression: H.264
Audio
Audio Communication: Two-Way
Audio Input & Output:: Built-in Microphone and Speaker
Others
ENVIRONMENT
Operating Temperature: -30 ℃ ~ 60 ℃ (-22 °F ~ 140 °F)
Storage Temperature: -40 ℃ ~ 60 ℃ (-40 °F ~ 140 °F)
Operating Humidity: 10%~90%RH, Non-condensing
Storage Humidity: 0~90%RH, Non-condensing
Certification: CE, FCC, RoHS, RCM
Package Contents:
Tapo C520WS CameraPower Adapter (3.0m)Mounting AnchorsMounting ScrewsBracket ScrewsMounting TemplateMounting BracketWaterproof SealWaterproof Cable AttachmentsQuick Start Guide
