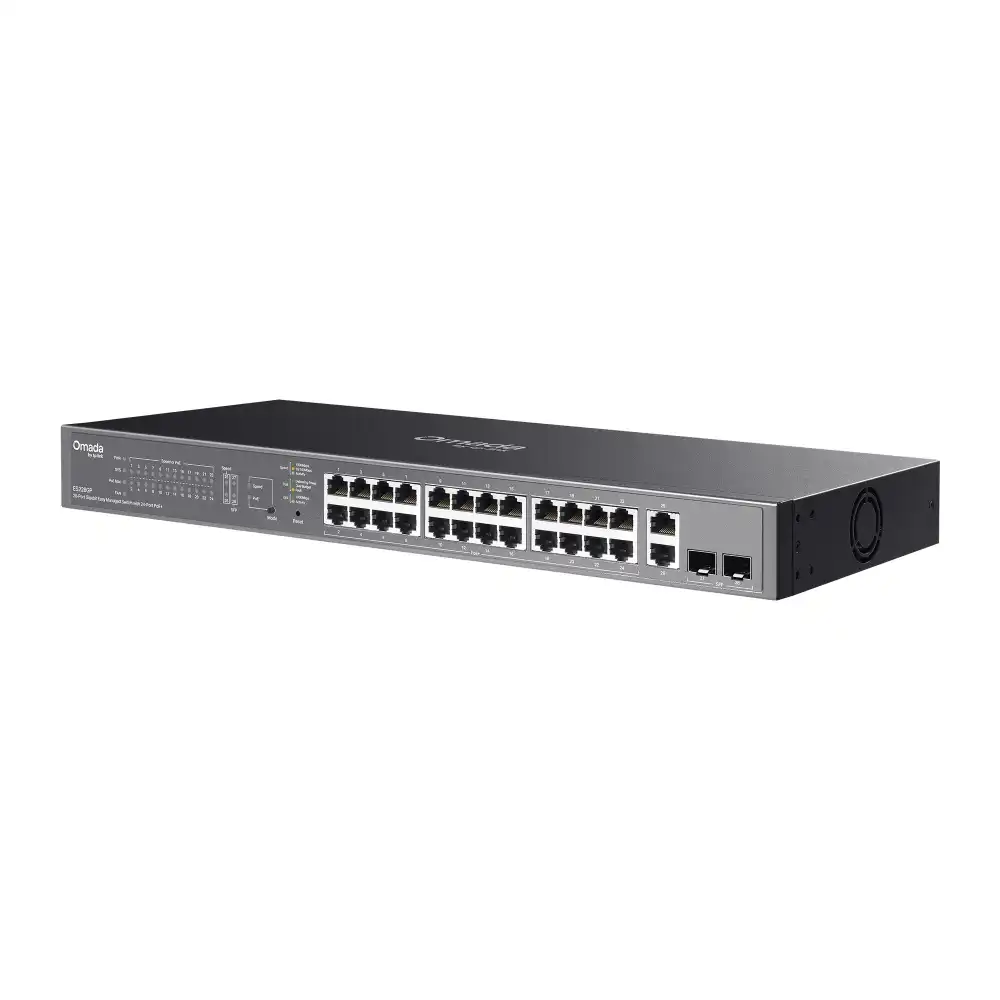

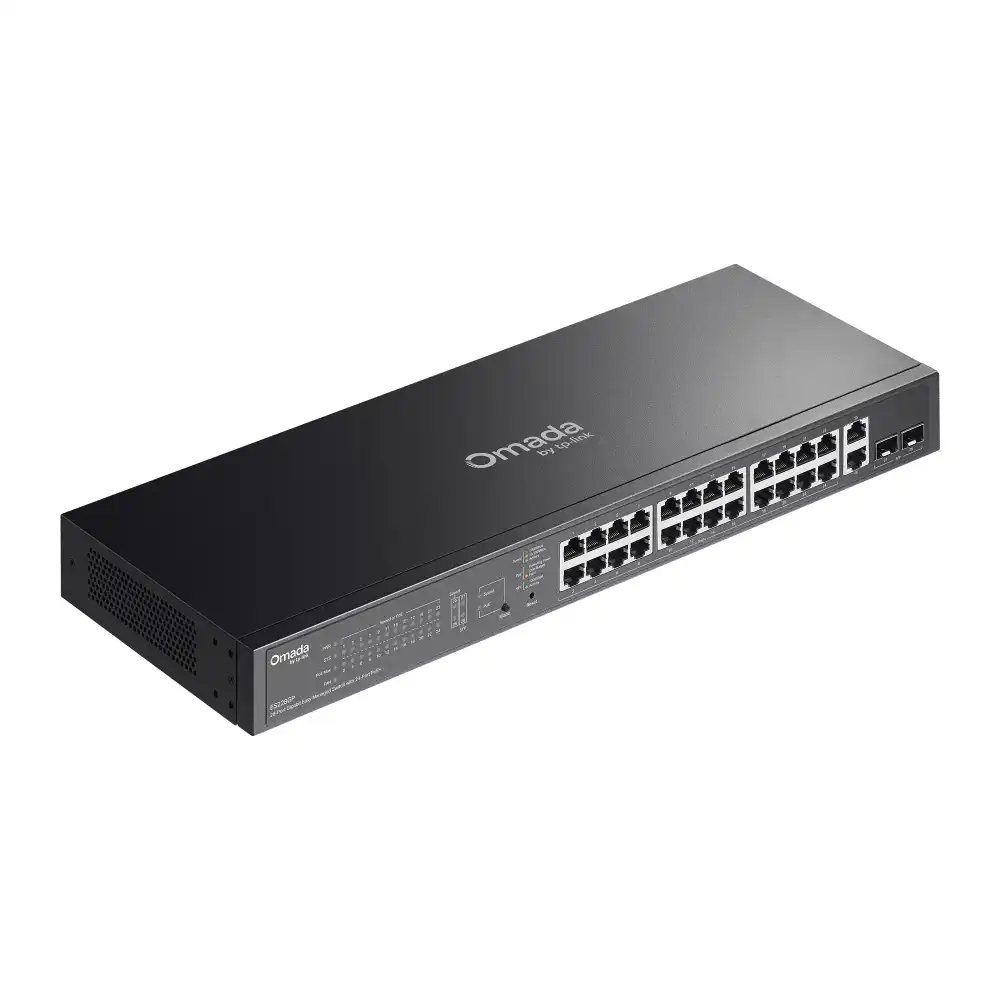

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ - Image 2

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ - Image 3

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ - Image 4

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ - Image 5

ES228GP V2Business Networking, Switch

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

+ Free Shipping

26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
2× Gigabit SFP slots
250W PoE Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app^†
Up to 820 ft (250 m) PoE**, QoS^△, PoE Auto Recovery^‡, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack mounting design

SKU: ES228GP V2 Categories: Business Networking, Switch Brand: Omada

Specification

Hardware Features

Interface	• 24× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/at-compliant PoE+) • 2× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP Slots • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	1
Installation	Rackmountable
Physical Security Lock	√
Power Supply	100–240V AC, 50/60Hz
PoE Ports (RJ45)	• Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 24 ports • PoE Budget: 250W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery^‡ • Up to 250m PoE transmission distance**
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Surge Protection	±6kV

Software Features

Quality of Service	• Port-based/802.1p/DSCP QoS^△ • 8 Priority Queues • Priority Schedule Mode^△ – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rating Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control
L2 Features	• Link Aggregation – Static Link Aggregation – Up to 4 aggregation groups and up to 6 ports per group • Port Isolation • Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Traffic Statistics • 802.1ab LLDP • IEEE 802.3az EEE
L2 Multicast	• IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave
VLAN	• 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID
Transmission Method	Store-And-Forward

Performance

Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.67 Mpps
MAC Address Table	8K

Management Features

Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller (Requires built-in version 6.1.0 or later) • Omada Hardware Controller (Requires built-in version 6.1.0 or later) • Omada Software Controller (Requires built-in version 6.1.0 or later)
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • ONVIF*** • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

Others

Certification	FCC, CE, RoHS
Package Content	• ES228GP • Power Cord • Mounting Brackets • Mounting Feet • Screws • Installation Guide
Environment	• Operating Temperature:-5℃~50℃ (23℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
